Rubber Lined Elbows

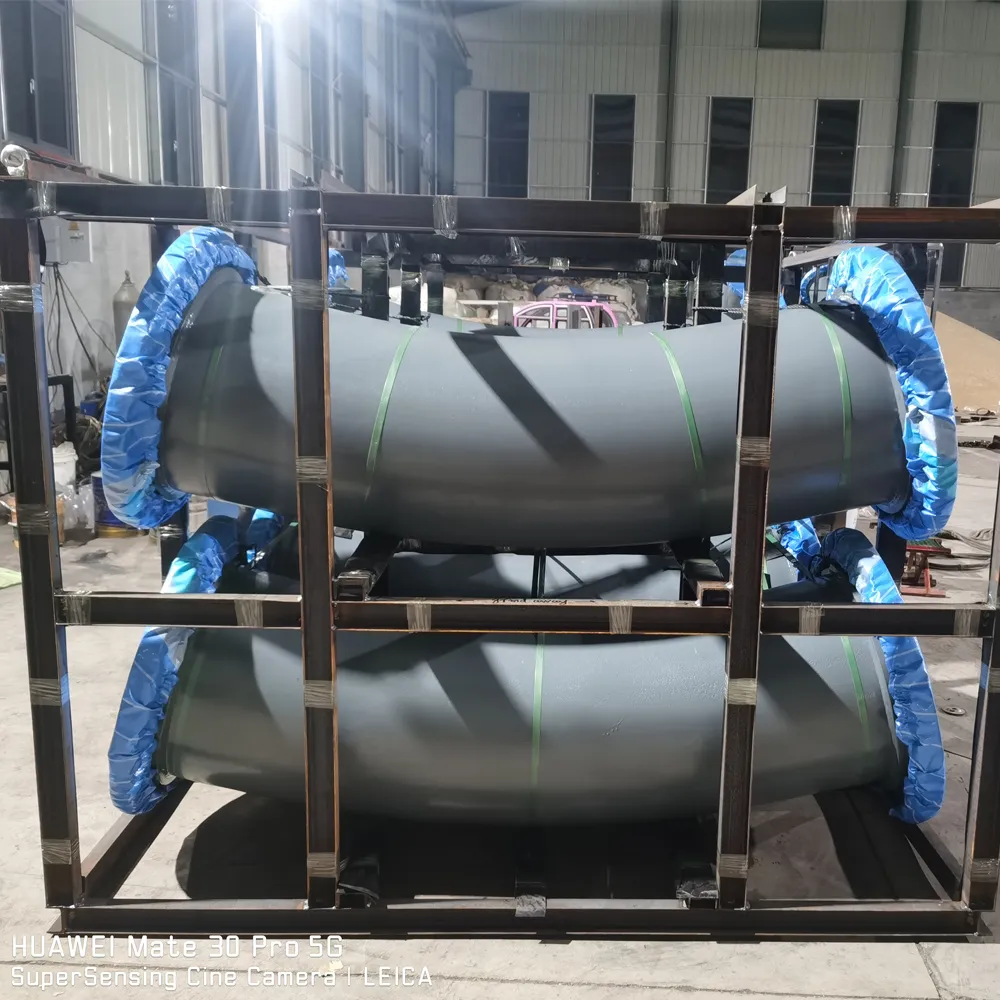

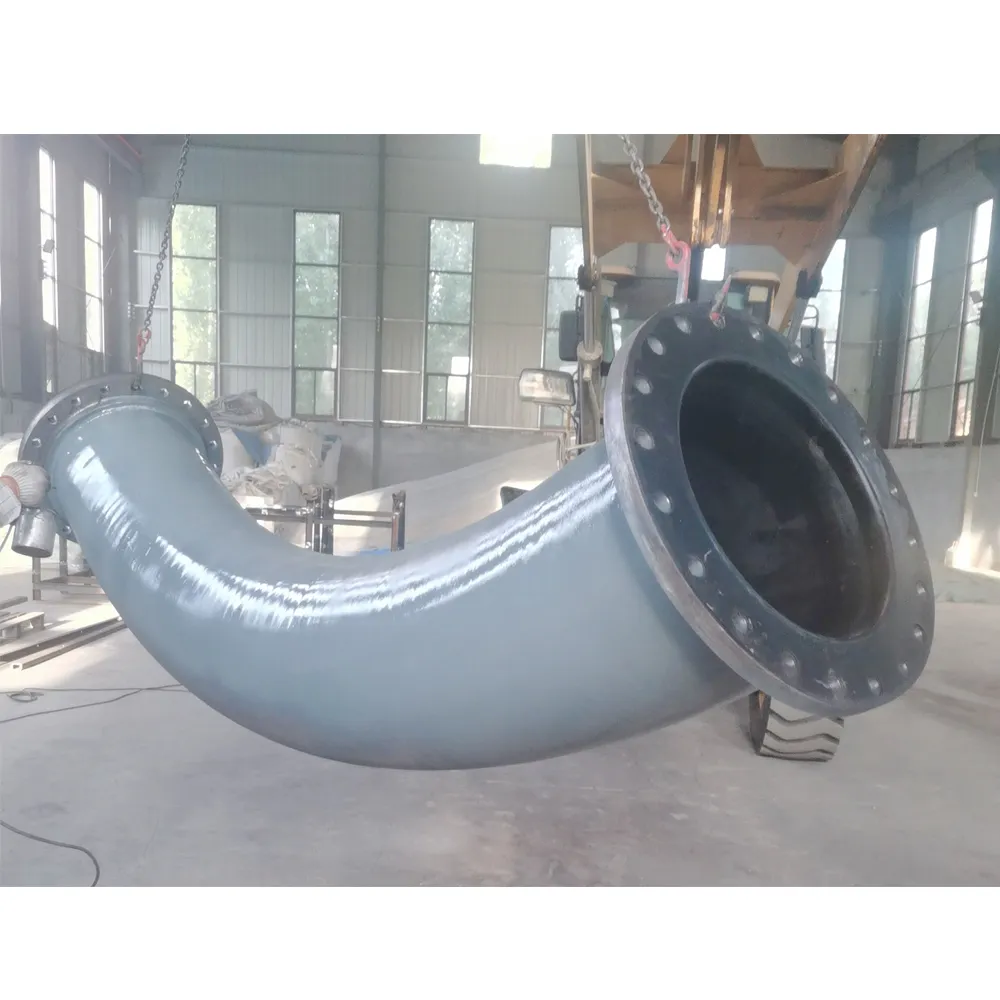

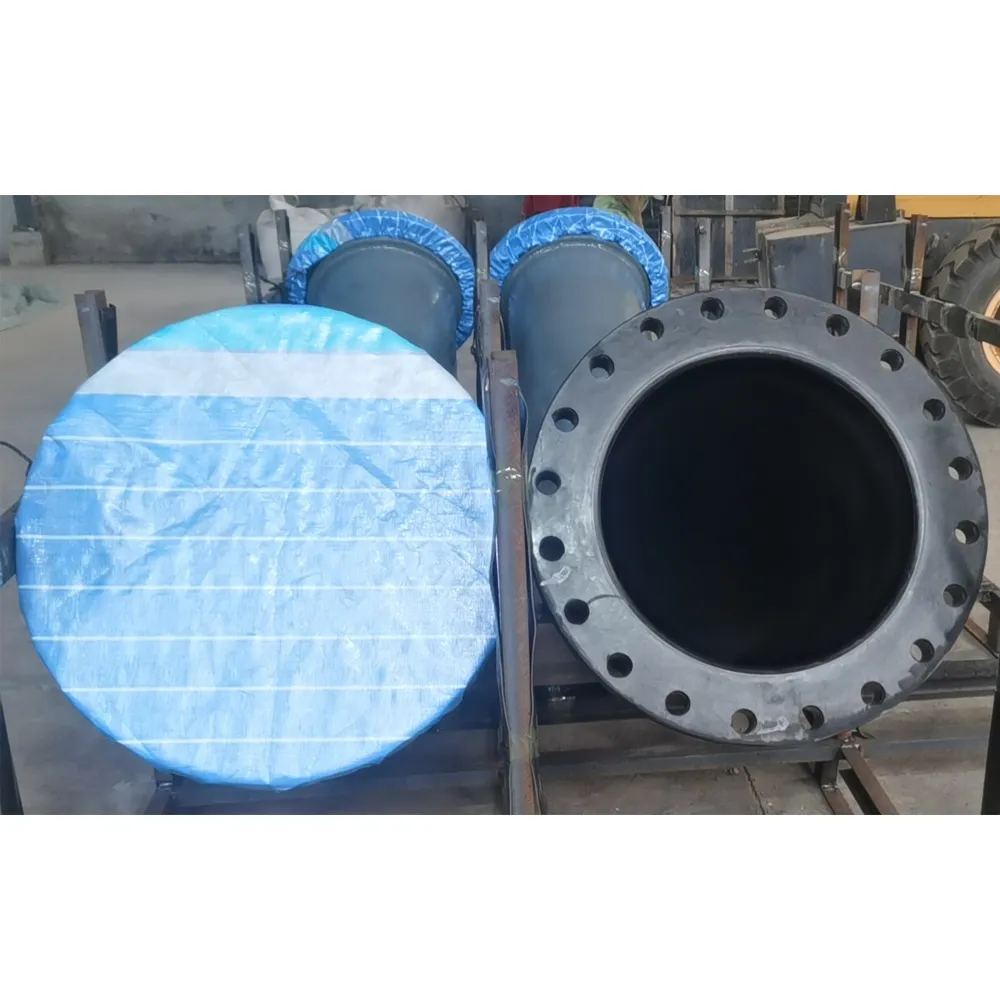

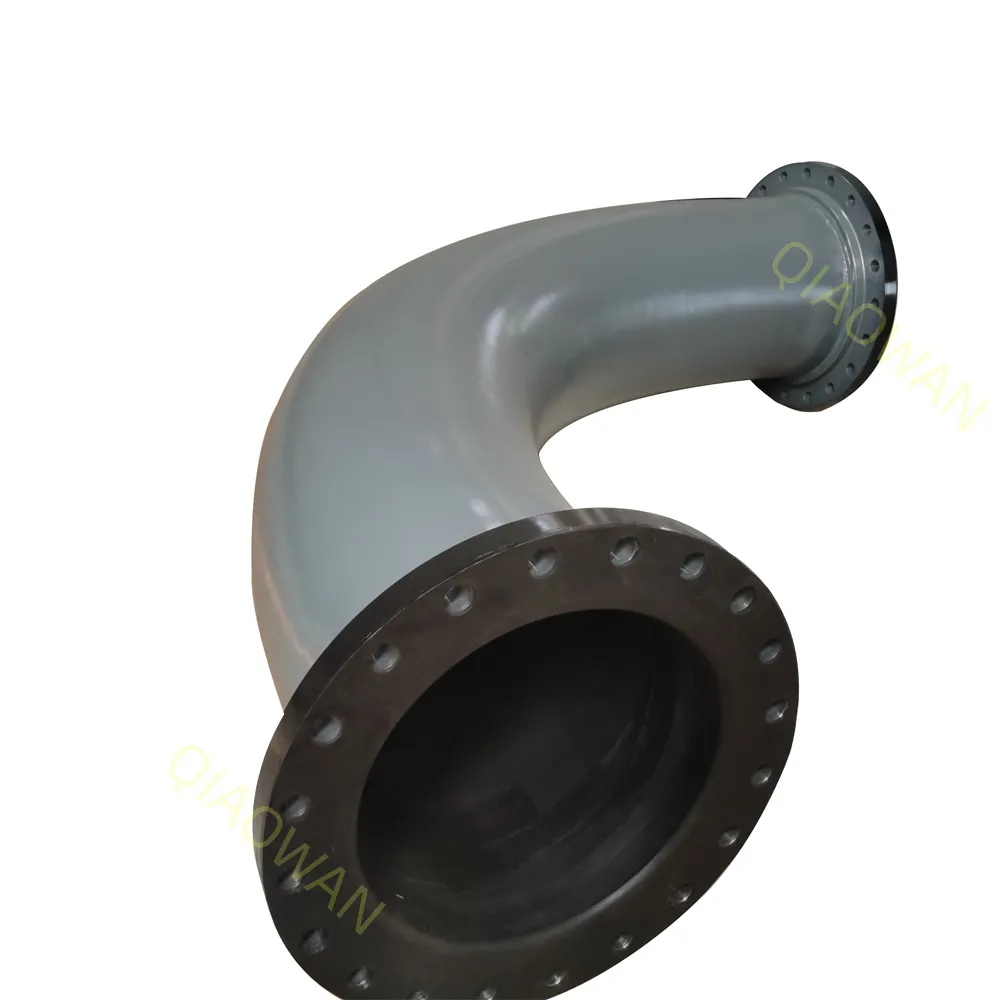

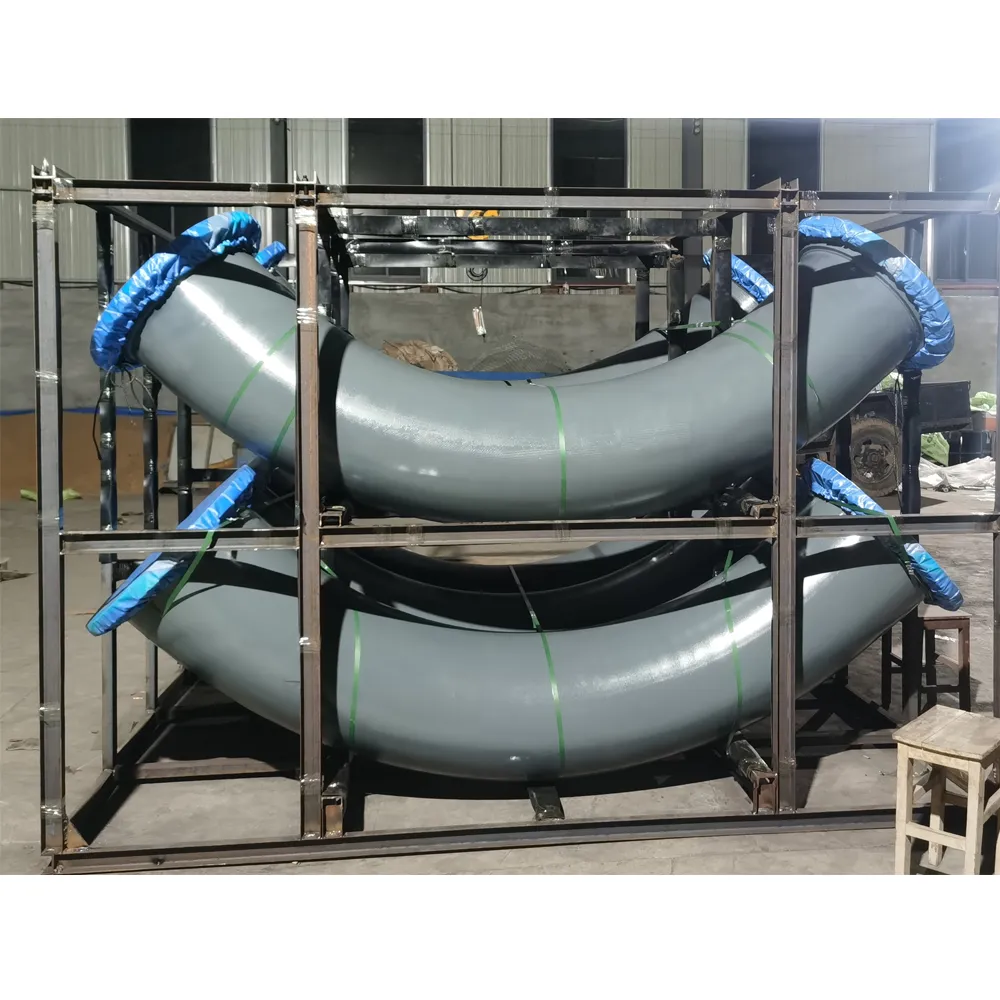

Rubber lined elbows are specialized composite pipeline components that integrate the robust structural strength of carbon steel with the exceptional abrasion and chemical resistance of high-grade rubber. By bonding a thick layer of natural or synthetic rubber to the internal surface of a steel elbow, these components provide a resilient barrier against the most aggressive media. This "hard-shell, soft-core" design is specifically engineered to handle the turbulent flow often found at pipeline bends, making them an essential solution for transporting high-velocity slurries and corrosive liquids in heavy industrial environments.

Superior Abrasion Resistance: Rubber is inherently elastic, allowing it to absorb the kinetic energy of solid particles. This makes rubber lined elbows significantly more durable than bare metal when conveying abrasive ores, sand, or tailings.

Excellent Corrosion Protection: The seamless rubber lining provides an impermeable barrier against a wide range of acids, alkalis, and corrosive chemicals, preventing the steel substrate from oxidizing or degrading.

Vibration and Noise Dampening: The natural elasticity of the rubber lining acts as a shock absorber, effectively reducing pipeline vibration and operational noise caused by turbulent fluid flow.

Impact Resilience: Unlike brittle coatings, rubber can withstand the impact of large solid particles or sudden pressure surges without cracking or delaminating.

Smooth Flow Dynamics: The internal lining creates a consistent surface that minimizes flow resistance and prevents the buildup of minerals or scaling, maintaining optimal system pressure.

Customizable Formulations: Depending on the application, we offer various lining types, including Natural Rubber (NR) for maximum abrasion resistance, or synthetic rubbers (such as EPDM or Nitrile) for specific chemical or temperature requirements.

Reliable Bonding Technology: Our advanced cold or hot vulcanization processes ensure an incredibly strong bond between the rubber and the steel, ensuring the lining remains secure even under vacuum or high-pressure conditions.

Rubber lined elbows are the preferred choice for high-wear areas in several key sectors:

Mining & Mineral Processing: Tailings discharge, ore slurry transport, and cyclone feed lines.

Power Generation: Flue Gas Desulfurization (FGD) systems and bottom ash handling.

Dredging Industry: Discharge lines for sand, gravel, and sea mud.

Chemical Industry: Transportation of phosphoric acid, hydrochloric acid, and other corrosive fluids.

Wastewater Treatment: Handling abrasive sludge and chemically treated effluents.

Steel & Metallurgy: Pickling lines and abrasive waste disposal.

Diameter Range: DN25 – DN2000 (Customizable for large-scale industrial projects)

Degree Options: 15°, 30°, 45°, 60°, 90° (Custom radius elbows available)

Lining Material: Natural Rubber (NR), EPDM, Butyl, or Neoprene

Lining Thickness: Typically 3mm to 15mm (Optimized based on particle size and velocity)

Outer Pipe Body: Carbon Steel (e.g., Q235B, ASTM A106) or Stainless Steel

Working Pressure: PN10, PN16, PN25, and higher custom ratings

Temperature Range: Generally –40°C to +100°C (Depending on rubber formulation)

Rubber lined elbows represent the ultimate defense for pipeline systems facing extreme wear and corrosion. By focusing on the most vulnerable points of a piping network—the bends—these components drastically reduce maintenance intervals and prevent costly leaks. Hebei Qiao Wan Metal Products Co., Ltd. provides precision-engineered rubber lining solutions that ensure your fluid transport systems remain efficient, silent, and exceptionally long-lasting in the toughest working conditions.
